Wet Room ACO Shower Channel for tiled floor - 800mm

Product ID 04436
Manufacturer Aco Wet Room Drains

Wetrooms from Aco Wet Room Drains

Delivery Details
£3.99
Delivery Charge :
3 - 7 Days
Delivery timescale :
Please choose from the following options
List Price: £228.18

You save £63.18
£165.00
All our prices include VAT

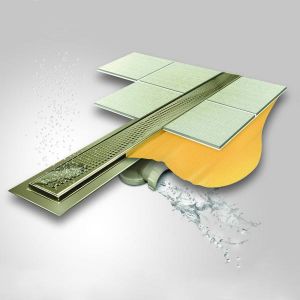

Wet Room ACO Shower Channel for tiled floor - 800mm by Aco Wet Room Drains

  1. Wide range of attractive, easy-clean electro-polished stainless steel designer gratings
  2. Friction lock ensures safe grating retention, yet easily removed without the need for special tools.
  3. Corrosion resistant stainless steel channel body ensures trouble-free and long-life use. Vee channel base aids efficient water flow to the outlet.
  4. Silica impregnated stainless steel bonding flange integrated with channel body design ensures fully watertight construction and the ideal interface to wet room tanking materials for assured performance.
  5. Fixing holes for timber floor installation.
  6. Anchor tangs for concrete/screed floor installation.
  7. High flow rate 0.4 l/s corrosion resistant ABS foul air trap with 50mm water seal to BS EN 1253 with full 360° rotation for convenient waste pipe connection. Trap elements easily removed for cleaning and access without special tools.  Also available with a 19mm water seal trap option for restricted depth applications, please contact us for more information.
  8. 40mm multi-fit waste pipe connection accepts all 40mm (1½") solvent weld and push-fit waste pipes to BS 5254 and BS 5255. Variable orientation outlet for horizontal or vertical waste pipe connection.


The following grating styles are available


Wet Room Chain Grate

 Chain Grating for Wet Room Shower Channel


Hawaii Grating for Wet Room Shower Channel

Hawaii Grating for Wet Room Shower Channel



Intercept Grating for Wet Room Shower Channel

Intercept Grating for Wet Room Shower Channel



Quadrato Grating for Wet Room Shower Channel

 Quadrato Grating for Wet Room Shower Channel



Tile Grating for Wet Room Shower Channel

Tile Grating for Wet Room Shower Channel



Wave Grating for Wet Room Shower Channel

Wave Grating for Wet Room Shower Channel


Did you know?


You can add illumination to this shower channel


ACO Lightline


This fantastic lighting option can be added to any of the gratings above.

Click below to watch the 3 minute video.



Aco Shower channel Lightline image


Aco lightline detail image


aco shower channel light line blocks


aco light line charger
